CMOS Sensor | Product Line up

CMOS Sensor We provide imaging solutions through forefront camera technologies.

Product Line up

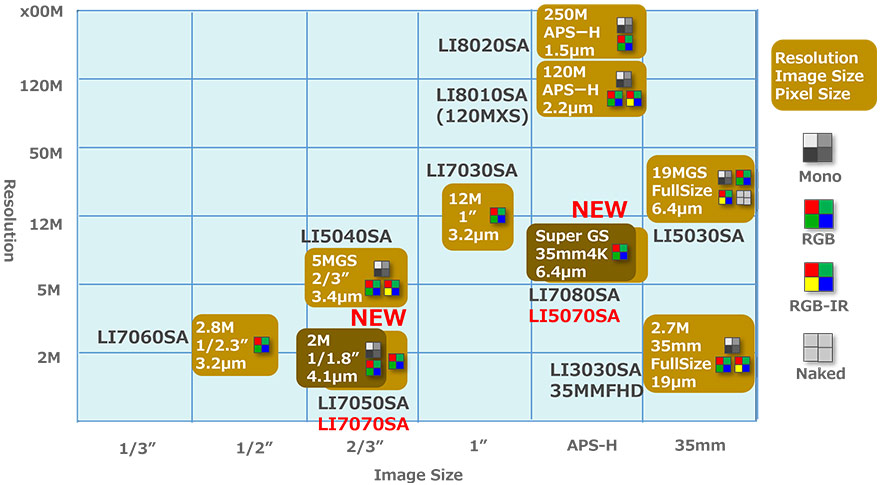

APS-H LI8020SA APS-H 120MXS 1/1.7” TBD 1” LI7030SA Super35mm TBD 2/3” 3U5MGXSBA 1/2.3” LI7060SA Full Size LI3030SA 1/1.8” LI7050SA
Product Shutter
Type		 Image
Size		 Resolution Pixel
Size
(μm)		 Chroma IF Max Frame Rate
(fps)		 Application
LI7050SAC Rolling-shutter 1/1.8" 2.1M 4.1 RGB MIPI CSI2 60
(Normal 12bit)
30
(HDR 12bit)		 Surveillance
35mm
FHDXSCA		 Rolling-shutter 35mm Full Size 2.7M 19 B/W Analog
(serial)		 115
(FullHD)		 Space science
/Surveillance
35mm
FHDXSMA		 Rolling-shutter 35mm Full Size 2.7M 19 RGB Analog
(serial)		 115
(FullHD)		 Space science
/Surveillance

NEW

LI3030SAM		 Rolling-shutter 35mm Full Size 2.7M 19 B/W Analog
(serial)		 115
(FullHD)		 Space science
/Surveillance

NEW

LI3030SAI		 Rolling-shutter 35mm Full Size 2.7M 19 RGB/IR Analog
(serial)		 115
(FullHD)		 Space science
/Surveillance

NEW

LI7060SAC		 Rolling-shutter 1/2.3" 2.8M 3.2 RGB MIPI CSI2 60 Surveillance
3U5MGXSBAM Global-shutter 2/3" 5M 3.4 B/W LVDS 120 Industry
3U5MGXSBAC Global-shutter 2/3" 5M 3.4 RGB LVDS 120 Industry
/Surveillance
3U5MGXSBAI Global-shutter 2/3" 5M 3.4 RGB/IR LVDS 120 Industry
/Life science
LI7010 Rolling-shutter Super 35mm 10M 6.4 RGB LVDS 60 Surveillance
LI7020SAC Rolling-shutter 1/1.7" 12M 1.86 RGB LVDS 30
(4K2K)		 Surveillance
LI7030SAC Rolling-shutter 1" 12M 3.2 RGB LVDS 60
(4K2K)		 Surveillance
120MXSM Rolling-shutter APS-H 120M 2.2 B/W LVDS 9.4 Industry
120MXSC Rolling-shutter APS-H 120M 2.2 RGB LVDS 9.4 Surveillance
/Industry
120MXSI Rolling-shutter APS-H 120M 2.2 RGB/IR LVDS 9.4 Life science
/Surveillance

NEW

LI8020SAC		 Rolling-shutter APS-H 250M 1.5 B/W LVDS 5 Surveillance
/Industry

NEW

LI8020SAM		 Rolling-shutter APS-H 250M 1.5 RGB LVDS 5 Surveillance
/Industry

2M-5M

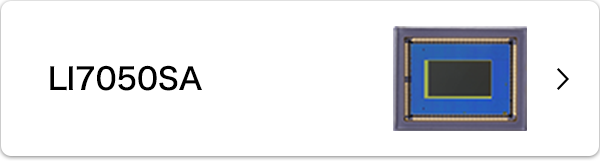

  • LI7050SA
    High dynamic range(HDR) function with 120dB.
    1/1.8 inch 2.12M Pixel.

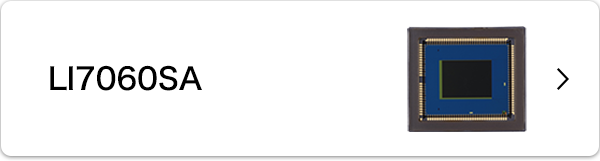

  • NEW LI7060SA
    High dynamic range(HDR) function with 120dB.
    1/2.32 inch 2.82M Pixel.

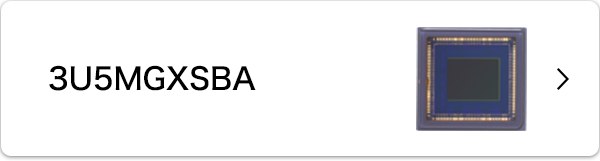

  • 3U5MGXSBA
    Global shutter.
    Exposes all pixels at the same time.
    2/3inch 5.33M Pixel.

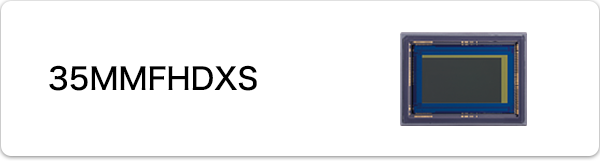

  • 35MMFHDXS
    High sensitivity, low noise.
    Pixel size 19um.
    35mmFull Size 2.76M Pixel.

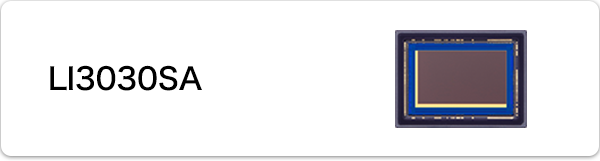

  • NEW LI3030SA
    NIR sensitivity is improved compared to conventional models.
    35mmFull Size 2.12M Pixel.

10M-50M

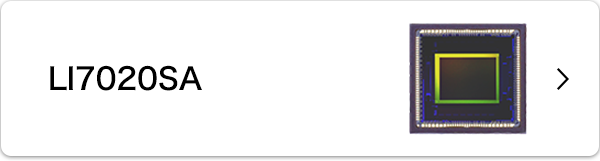

  • LI7020SA
    Pixel size is compact.(1.86um)
    High sensitivity. Support 4K.
    1/1.7inch 12M Pixel.

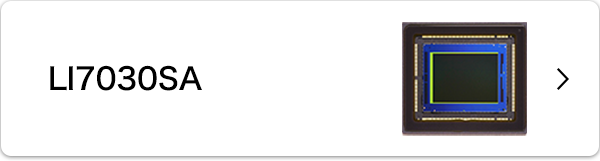

  • LI7030SA
    Supports video and still Image.
    1inch12M Pixel.
  • LI7010
    This sensor is capable of 4K2K readout at 60 fps.
    Super35mm 9.24M Pixel.

100M-

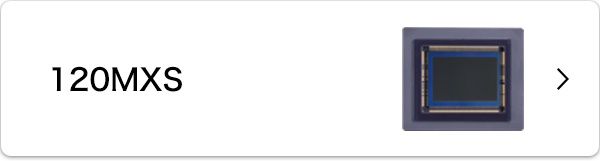

  • 120MXS
    It has as many pixels as the human eye.
    APS-H 122M Pixel.

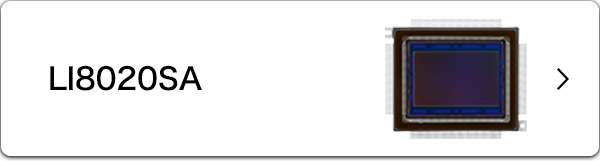

  • NEW LI8020SA
    It possible to obtain detailed information.
    APS-H 246M Pixel.

Contact for CMOS Sensor

IoT Vision Sales Dept. Planning Div. Industrial Equipment Headquarters. Canon Marketing Japan Inc.
